COMTEC Success in Action

Explore real-world examples of how powder metal conversion helped customers improve manufacturability, reduce cost, and achieve long-term production consistency.


parallax image

Case Studies: Powder Metal Conversions

Conversion to powder metal has helped our customer realize significant cost savings while providing scalability and consistency with premium quality.
Fine Blanking Conversion
Bar Stock Conversion
Zinc Die Casting Conversion
Hobbed Spur Gear Conversion
unnamed (81)

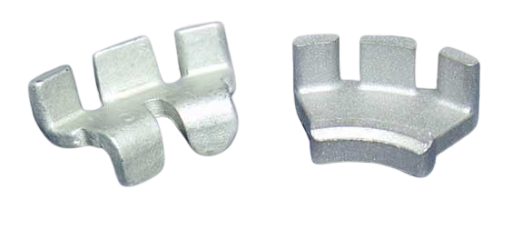

Left: Existing part  |  Right: Powder metal equivalent

The customer’s original component was manufactured using fine blanking and required additional machining to create the full radii in the lug area — adding both cost and production time. We developed a powder metal alternative that achieved a complete net-shape design directly from the compaction process, eliminating the need for secondary machining without sacrificing strength or performance.

Better Performance, Lower Cost

  • Complete net-shape powder metal solution
  • Eliminated costly secondary machining operations
  • Maintained required part strength and durability
  • Tooling costs reduced to less than 25% of fine blanking tooling
  • Overall part cost savings of approximately 30%
  • Streamlined production and improved manufacturing efficiency
unnamed (82)

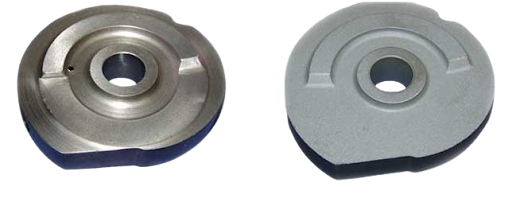

Left: Existing part  |  Right: Powder metal conversion


The customer’s original component was fully machined from bar stock, resulting in slow production rates, excessive material waste, and high overall manufacturing costs. We developed a powder metal equivalent that delivered the same functional performance while dramatically improving production efficiency and reducing material scrap.

Key Advantages

  • Replaced a fully machined bar stock component
  • Reduced material waste and scrap costs
  • Improved production efficiency and throughput
  • Maintained the same fit, form, and function
  • Simplified manufacturing process
  • Achieved overall part cost savings of 38%
V2 (2)

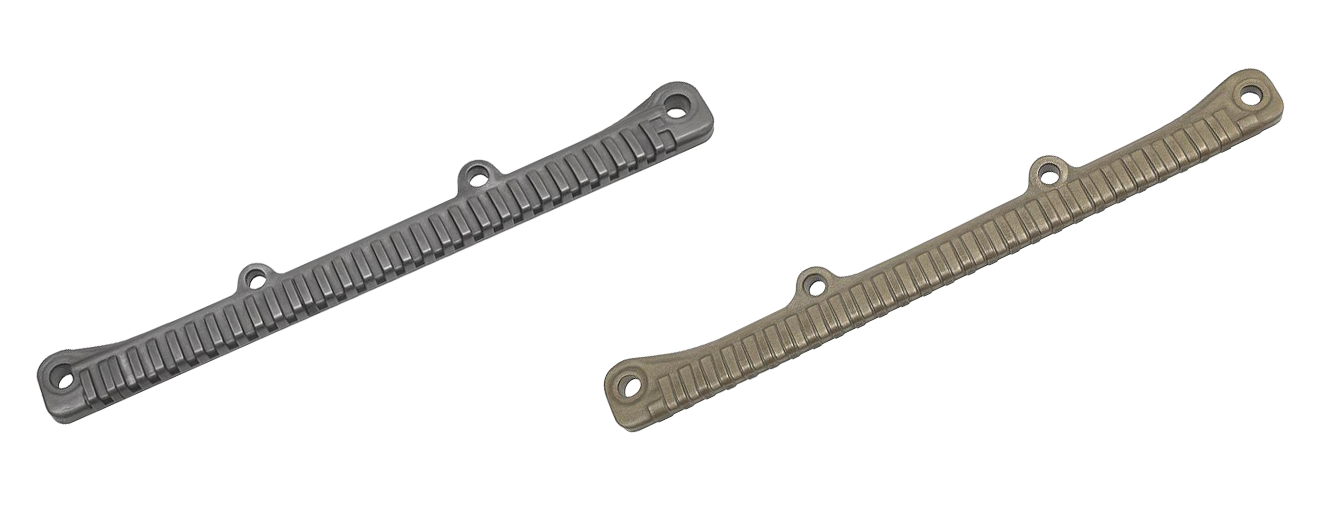

Left: Existing part  |  Right: Powder metal conversion

The customer’s original component was manufactured using zinc die casting, which resulted in higher production costs and material properties that did not fully meet performance expectations. We engineered a powder metal alternative that achieved a complete net-shape design without the need for secondary trimming operations, improving both manufacturing efficiency and overall part performance.

Cost & Production Benefits

  • Replaced a zinc die cast component with a powder metal solution
  • Achieved complete net-shape production without trimming
  • Improved material strength and physical properties
  • Simplified manufacturing and reduced secondary operations
  • Reduced tooling costs to one-eighth the cost of zinc die cast tooling
  • Delivered an overall part cost reduction of 55%
unnamed (83)

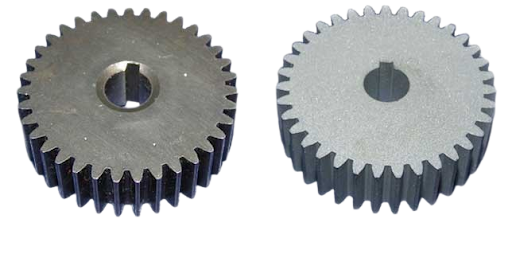

Left: Existing part  |  Right: Powder metal conversion


The customer’s original component was manufactured as a hobbed spur gear with a broached keyway, creating high production costs and limiting manufacturing efficiency. We developed a powder metal alternative that delivered a complete net-shape gear directly from the compaction process, eliminating the need for secondary operations while improving production throughput and reducing overall costs.

Efficiency Gains

    • Replaced a hobbed and broached gear component
    • Eliminated secondary machining operations
    • Achieved complete net-shape production
    • Increased manufacturing efficiency and production rates
    • Reduced overall production complexity
    • Delivered part cost savings of approximately 40%

Customer Success Stories:
Vision Quality Products, their name says it all, except for the words “World Class Partner.” They have the Vision to preempt my needs. Their Quality is exceptional. I wish all my suppliers were like them. A true pleasure to work with their team of professionals.
Andrew M
Purchasing Manager
Vision has quickly become one of our best suppliers. Their top-notch quality, responsiveness, on time delivery, technical knowledge, and attention to detail of critical components ensure we are able to deliver an excellent product to our customers around the world. All these things combined make it a pleasure to do business with Vision!
Eric N
Purchasing Manager
We had a new application that required a 30% increase in the strength of our gear for our hydraulic pump. We partnered with Vison Quality Components, Inc. to help us with this project. Their expertise in materials, processes, and quality helped us accomplish this project. Since then they have been our go to supplier for all our powdered metal components
Bill E
Senior Project Engineer
IMG_6879 (1)

Success Built Through Partnership

Every project starts with a challenge. See how COMTEC partners with customers to develop reliable, high-performance manufacturing solutions.

Talk With Our Team
