Types of Heat Treatment for Powder Metal Parts: Comparing 5 Common Methods

Heat treatment can change the hardness, wear resistance, surface condition, dimensional stability, and machinability of a powder metal part. But the right heat-treatment process depends on more than the hardness you're trying to achieve.

Part geometry, material selection, production volume, downstream machining, and customer specifications can all affect which method makes sense.

Sinter hardening, for example, can integrate hardening directly into the powder metal sintering process. Quench and temper offers a more traditional approach to through hardening, while induction hardening targets specific areas of a component.

Understanding those differences can help engineers select a heat-treatment process based on the actual requirements of the application.

5 Common Heat-Treatment Methods for Powder Metal Parts

There isn't one heat-treatment method that's right for every powder metal part. Some processes harden the entire component, some target specific areas, and others are selected for their processing atmosphere or the surface condition they create.

The five heat-treatment methods we'll compare are:

1. Quench and Temper
2. Sinter Hardening
3. Induction Hardening
4. Steam Treatment
5. Vacuum Heat Treatment

Let's look at how each heat-treatment process works, its advantages and limitations, and where it may fit within a powder metal application.

1. Quench and Temper for Powder Metal Parts

Quench and temper is a traditional heat-treatment method generally used when a powder metal component needs through hardening rather than hardness limited to a specific surface or feature.

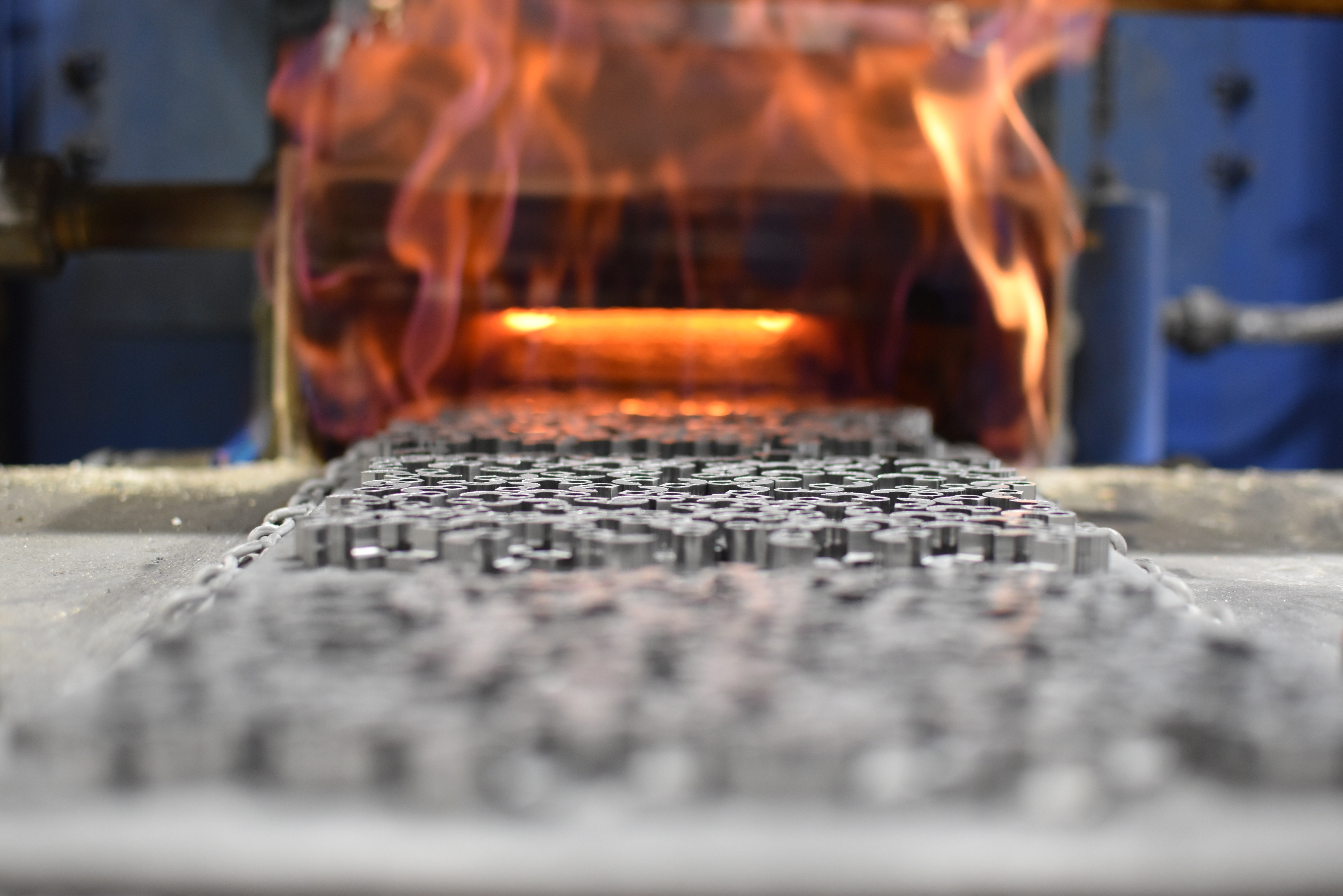

In a typical continuous-belt process, parts travel through a high-temperature furnace before the belt carries them into an oil-quench tank. Rapid cooling in the oil produces the hardening response.

The components then continue through a tempering furnace to achieve the required final properties.

Advantages and Limitations of Quench and Temper

The ability to harden the entire component is one of the main reasons to consider quench and temper. If the application requires through hardness and the selected material supports the process, it may be an appropriate option.

The oil quench also introduces a potential drawback: surface appearance.

Oil-quenched powder metal parts can develop staining and inconsistencies in their finished appearance. That doesn't necessarily affect whether the component meets its functional requirements, but it can matter when surface condition is an important part requirement.

Quench and temper also occur as a separate heat-treatment operation after the core powder metal manufacturing process.

2. Sinter Hardening for Powder Metal Parts

Sinter hardening integrates hardening into the normal powder metal sintering process.

A sinter-hardenable material is processed in a specialized sintering furnace. Rather than leaving the sintering process and undergoing a separate oil quench, the component is cooled within the controlled furnace atmosphere.

This allows the required hardening response to occur as part of the sintering operation.

Advantages of Sinter Hardening

Process integration is one of the biggest differences between sinter hardening and conventional quench and temper.

Because parts aren't oil quenched, sinter hardening can avoid oil-quench staining and produce a cleaner, more consistent surface appearance. Sinter-hardened components may have a consistent golden hue across the part.

Integrating hardening with sintering can also eliminate a separate conventional heat-treatment operation when the material and application support it.

That doesn't mean sinter hardening is automatically better than quench and temper.

Its suitability depends on the material, geometry, required properties, customer requirements, and engineering specifications. Some applications won't be appropriate for sinter hardening at all.

3. Induction Hardening for Localized Powder Metal Hardness

Not every powder metal component needs to be hardened throughout.

Induction hardening provides localized hardening, allowing a manufacturer to target a specific feature without hardening the entire component.

A sprocket is one example. If a particular wear surface or feature requires additional hardness, induction hardening can treat that area while leaving the rest of the component largely unaffected by the hardening operation.

The hardened region may even be visible as a darker ring or area on the finished component.

When Does Localized Hardening Make Sense?

The decision comes back to how the part performs in its application.

If hardness is needed throughout the component, a through-hardening method may make more sense. If wear or loading is concentrated in a particular area, localized induction hardening may provide the required performance without treating the entire part.

Understanding where the component needs hardness can help narrow the heat-treatment options early in the design process.

4. Steam Treatment for Powder Metal Parts

Steam treatment serves a different purpose than conventional hardening processes.

The process creates a controlled oxide layer around the powder metal component, producing consistent oxidation and a controlled surface condition.

Steam treatment can also help prevent uncontrolled scaling.

Its applications are generally narrower than those of processes such as quench and temper or sinter hardening. The required surface characteristics of the component should therefore drive the decision to use steam treatment.

5. Vacuum Heat Treatment for Powder Metal Parts

Vacuum heat treatment processes components in a low-oxygen environment and is typically performed as a batch operation.

Parts are loaded into baskets or cages on a cart before being placed inside a large vacuum chamber. The chamber is closed, and the specified heat-treatment cycle is performed.

Afterward, the baskets are removed and transferred to a separate continuous-belt tempering furnace.

This differs from conventional quench and temper, where heating, quenching, and tempering can occur as part of a continuous line.

When Is Vacuum Heat Treatment Used?

A low-oxygen processing environment is one potential reason to consider vacuum heat treatment.

Production volume, batch size, downstream machining, and the final characteristics required from the component may also affect whether vacuum treatment is considered instead of conventional quench and temper.

However, the specific technical reasons for choosing vacuum heat treatment over quench and temper are application-dependent. Those requirements should be confirmed for the material and component rather than assuming vacuum treatment provides a universal performance advantage.

Comparing Heat-Treatment Methods for Powder Metal Parts

The best powder metal heat-treatment process isn't simply the one that produces the most hardness. It's the process that produces the right properties in the right areas of the component while meeting material, manufacturing, and customer requirements.

This comparison is a starting point. Material selection can narrow those options considerably.

How Material Selection Affects Powder Metal Heat Treatment

Material choice and heat-treatment method can't be evaluated independently.

Different powder metal materials respond differently to heating and cooling. A material selected for conventional quench and temper won't necessarily be the best material for sinter hardening.

Customer specifications can further limit the available options.

For example, a customer's engineering print may specify both a particular material and heat-treatment process. If another material and process combination could provide better manufacturing or performance characteristics, the manufacturer can't simply make the substitution.

The customer may need to approve the change and revise the engineering print or material specification.

That's why heat treatment is best considered early in the powder metal design process. Material, density, geometry, heat treatment, and final performance can then be evaluated together instead of treating heat treatment as a decision made after the part has already been designed.

This is why design for manufacturing is so important.

Choosing the Best Heat Treatment for Your Powder Metal Application

Heat treatment isn't a one-size-fits-all decision.

Quench and temper can provide through hardening. Sinter hardening integrates hardening into the sintering process. Induction hardening targets specific areas. Steam treatment creates a controlled oxide layer. Vacuum heat treatment provides another processing option when the application calls for a low-oxygen environment or other specific manufacturing requirements.

The right choice comes down to the part.

Determining which heat-treatment method, powder metal material, and density are appropriate for your application can be tricky. Reach out to our team at COMTEC Manufacturing, and we’ll help guide you through the process.
